Power Supply Smart IOT Box Remote Control Outdoor Waterproof CCTV System with AC220V, AC24V, DC12V Output
Technical parameters
| Power Configuration |
| 220V AC Power Air Circuit-breaker | 1*220V/20A |
| 220V AC Power SPD | 1*power SPD: 220V max: 40kA, In: 10KA
Voltage protection Level≤1.1kV
Adding 1.2/50us (8-20us ) combined wave of L-N, 2KV does not cause to malfunction, 6KV is non-damaged, the upper limit is 10KV. |
| Auto-reclosing | Working voltage: 175-275VAC 50-60Hz
Rated output current: 10A
Electric leakage protection / action time: 30mA/≤0.1S
Over-voltage protection / action time: AC275V/2-5S
Under-voltage protection / action time: AC145V/2-5S
Over-current protection / action time: 16A/2-5S
Short circuit protection/ action time: 3 times input current/≤0.1S
Detection function before closing, with remote control function |
| AC200V Power Output | 6*AC220V/1A output, the maximum load is 220W, 5 outputs of which support voltage and current detection, support remote on/off
control, and 3 outputs are 5-hole sockets.
1*AC220V maintenance socket, 5-hole socket output (Not support voltage and current detection) |
| AC24V Power Output | 2*AC24V/4A output, maximum load 100W, terminal connection, support voltage and current detection, remote on/off control. |
| DC12V Power Output | 3*DC12V/2A output, maximum load 24W, terminal connection, support voltage and current detection, remote on/off control. |
| Power Consumption | Standby<20W, Full Load<2000W |
| Data Control Unit |
| Main Control Chip | Flash:512Byte, CPU: ARM 108MHz,SDRAM: 64KByte |
| Data Port | 1*RS232 data, 1*RS485 data, 2*switch input ports, 1*switch output port |
| I/O Function Port | 1*lighting control, 1*door status output, 1*fan control,
1*water leakage detection control, 3*status indicator output |
| Controlled power Output | 6*AC220V, 2*AC24V, 3*DC12V output, support remote control |
| Ethernet Port | 1*10/100Base-TX adaptive RJ45 port for transmission of network control signals |
| Ethernet Standard | IEEE802.3 10Base-TX, IEEE802.3u 100Base-TX |
| Data Display | An OLED display is used to display the address of the device and query various status information | | | |
| Others | | | |
| Fan | Built-in DC12V temperature control fan, speed 3000RPM |
| Box Door Lock | The default configuration is rust-proof fastening mechanical box door lock (electronic lock can be customized) |
| Disk Fiber Box | Equipped with 1*2 in 2 out disk fiber box, 2*optical fiber connection adapters |
| Storage Tray | 270*160*47mm |
| Physical Parameter |
| Operation TEMP / Humidity | -40~+80°C,5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+85°C,5%~95% RH Non condensing |
| MTBF | >100,000 hours |
| Dimension | 600*440*300mm |
| Net /Gross Weight | <23kg / <25kg |
| Installation | Pole hoop mount |
| Certification & Warranty |
| Lightning Protection / Protection Level | Lightning protection: 6KV 8/20us; Protection level: IP55 | | | |
| Certification | CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS | | | |
| Warranty | 2 years, lifelong maintenance. |
Product Overview
Intelligent power box is an intelligent power control system with high integration, strong functionality, and simple use and installation, it adopts a frame structure, providing AC220V, AC24V, DC12V multiple sets of voltage output, detection, and remote control. Embedded high-performance, high-stability intelligent control unit core, which can realize the detection and centralized monitoring and management of equipment such as environmental variables, power information, data communication, and transmission in the power box, with rich interfaces and powerful functions
Features
◇ Built-in automatic reclosing, when a leakage,over-voltage, under-voltage, over-current, short circuit, and other power failures occur, it can automatically disconnect and close. When the fault is eliminated, it can return to normal working status. At the same time, the relevant power data and the number of lightning strikes are displayed to the management platform in real-time.
◇ The built-in 40KA power supply anti-surge and lightning protection module can effectively reduce the damage to the internal equipment caused by the surge current and ensure the stable operation of the equipment.
◇ Provide a power box door alarm switch to detect the status of the box door, prevent the abnormal opening of the equipment box, and support the management platform to monitor the box door status in the real-time, arm, disarm, and other modes.
◇ Support power box dynamic ring monitoring and real-time linkage with the management platform, including but not limited to unpacking alarm, power failure alarm, network failure alarm, water leakage alarm, temperature and humidity alarm, unpacking lighting, etc.
◇ Support multiple types, multiple sets of output voltage, voltage data acquisition, and remote control, support 1*AC220V maintenance power supply, no less than 5*AC220V power output, 2*AC24V power output, and 3*DC12V power output. Each power supply can be individually remotely controlled on/off and power-down alarm.
◇ Support network equipment expansion (network switch, ONU equipment, etc.), real-time monitoring of network connection status, and remote restart of network equipment improving network connection reliability.

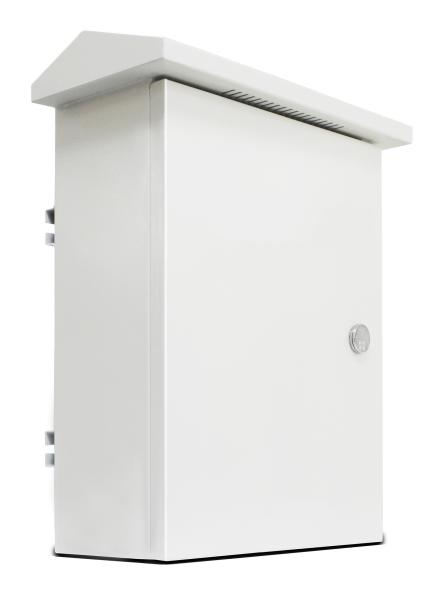

Product picture
